YHHF-WK1200Ⅱ Temperature-controlled Preheater Kettle–codex
Product Overview
Built for Efficient Thermoplastic Road Marking Material Melting
The YHHF-WK1200Ⅱ combines precise automatic temperature control, high-efficiency stirring and stable heating performance for everyday thermoplastic paint melting work. Its heavy-duty structure adapts to complex field construction environments, effectively reducing fuel and labor costs while significantly improving marking project efficiency.
01
Stable & Precise Heating
Automatically maintains a consistent working temperature and helps avoid overheating or cooling.
02
High-Efficiency Melting
High-torque hydraulic stirring promotes uniform heating and fast material melting.
03
Energy Saving & Easy Operation
Multi-layer insulation and an imported burner reduce fuel use; the controls remain straightforward.
Key Components
Designed for Stable Heating and Daily Field Work
Every key system supports reliable melting performance, clear operation and lower fuel consumption in demanding road-marking environments.
1
Multi-Layer Insulation Tank
Seven layers of heat-locking and air-circulation insulation help preserve material temperature.
2
Italian Imported RIELLO Burner
Electronic ignition and fully atomized combustion provide stable, low-coking performance.
3
High-Torque Hydraulic Stirring System
Forward and reverse mixing encourages uniform heating and prevents insufficient melting.
4
High-Precision Temperature Control System
Automatically stops at the set point and restarts when temperature falls, with ±0.1°C accuracy.
5
Heavy-Duty Power System
Changchai 18HP diesel power with a built-in generator supports dependable operation.
6
Ergonomic Operation Layout
The central control panel gives operators a clear display and low learning curve.
Technical Specifications
YHHF-WK1200Ⅱ Technical Data
The complete configuration is presented in an editable parameter list for quick purchasing review.
Machine Specifications
Model
YHHF-WK1200Ⅱ
Kettle Capacity
600 kg × 2
Engine
18HP electric-start diesel engine, Changchai (China)
Starting System
Built-in generator + electric-start battery
Battery
Camel maintenance-free automotive battery
Diesel Tank
170 L
Hydraulic Oil Tank
70 L, large-capacity active cooling
Burner / Diesel Filter
RIELLO (Italy)
Diesel Filtration
3-stage precision filtration
Hydraulic Motor
Imported high-torque hydraulic motor
Mixing
Reversible multi-channel integrated hydraulic drive
Thermal Insulation
7 layers
Temperature Accuracy
±0.1°C
Dimensions
1750 × 1700 × 1650 mm
Machine Weight
1.66 t
Performance Highlights
This compact, horizontal comparison table keeps the purchase-critical configuration visible. It becomes internally scrollable on small screens without widening the page.
Performance Item
YHHF-WK1200Ⅱ
Kettle capacity
600 kg × 2
Temperature control
±0.1°C automatic control
Thermal insulation
7-layer insulation
Burner
Italian RIELLO burner
Mixing system
High-torque reversible hydraulic stirring
Typical fuel consumption
Approx. 3 L/h, depending on operating conditions
Applications
Built for Different Road Marking Environments
The WK1200Ⅱ is configured for thermoplastic material melting across everyday highway, municipal and facility-marking work.

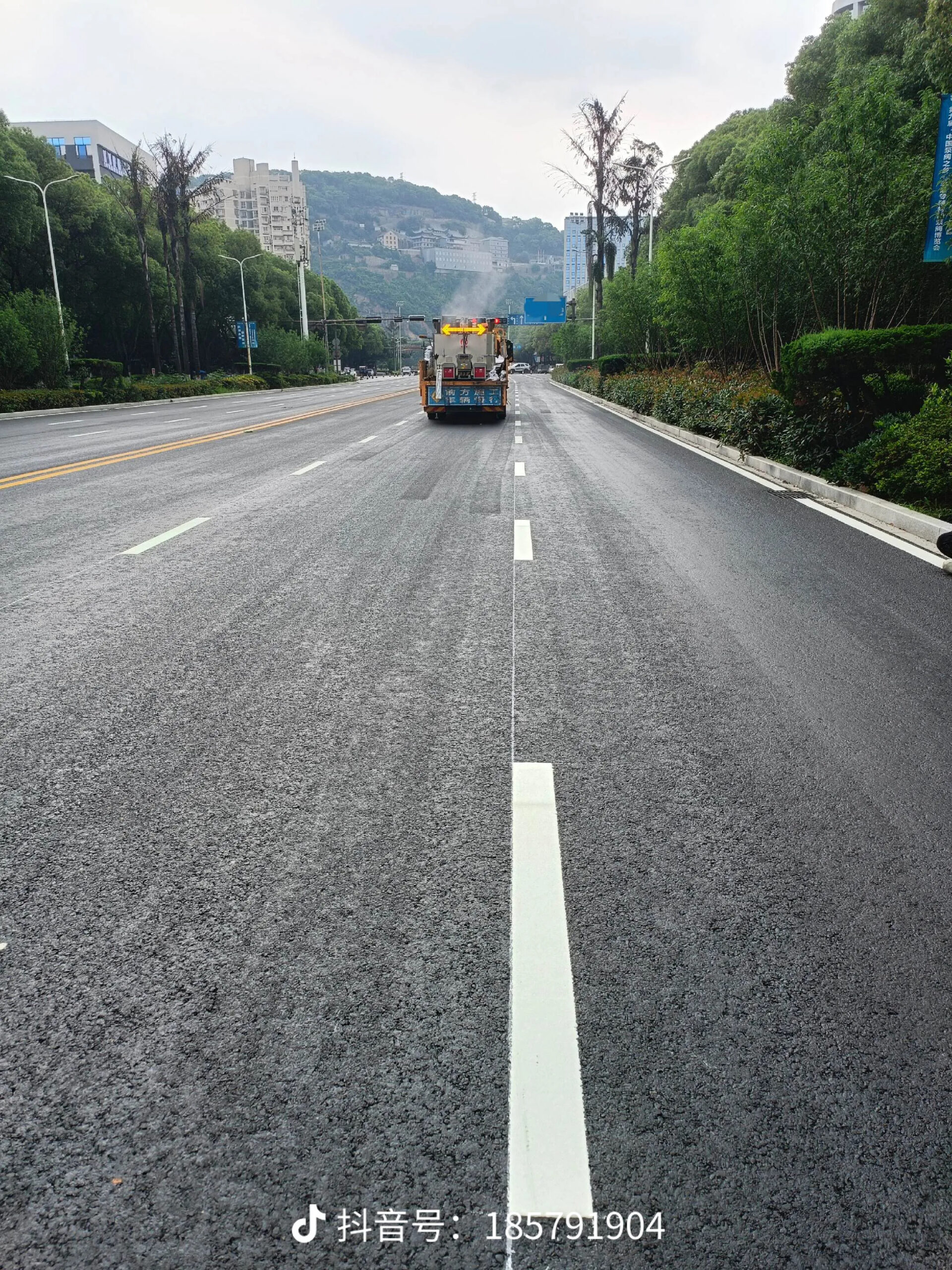

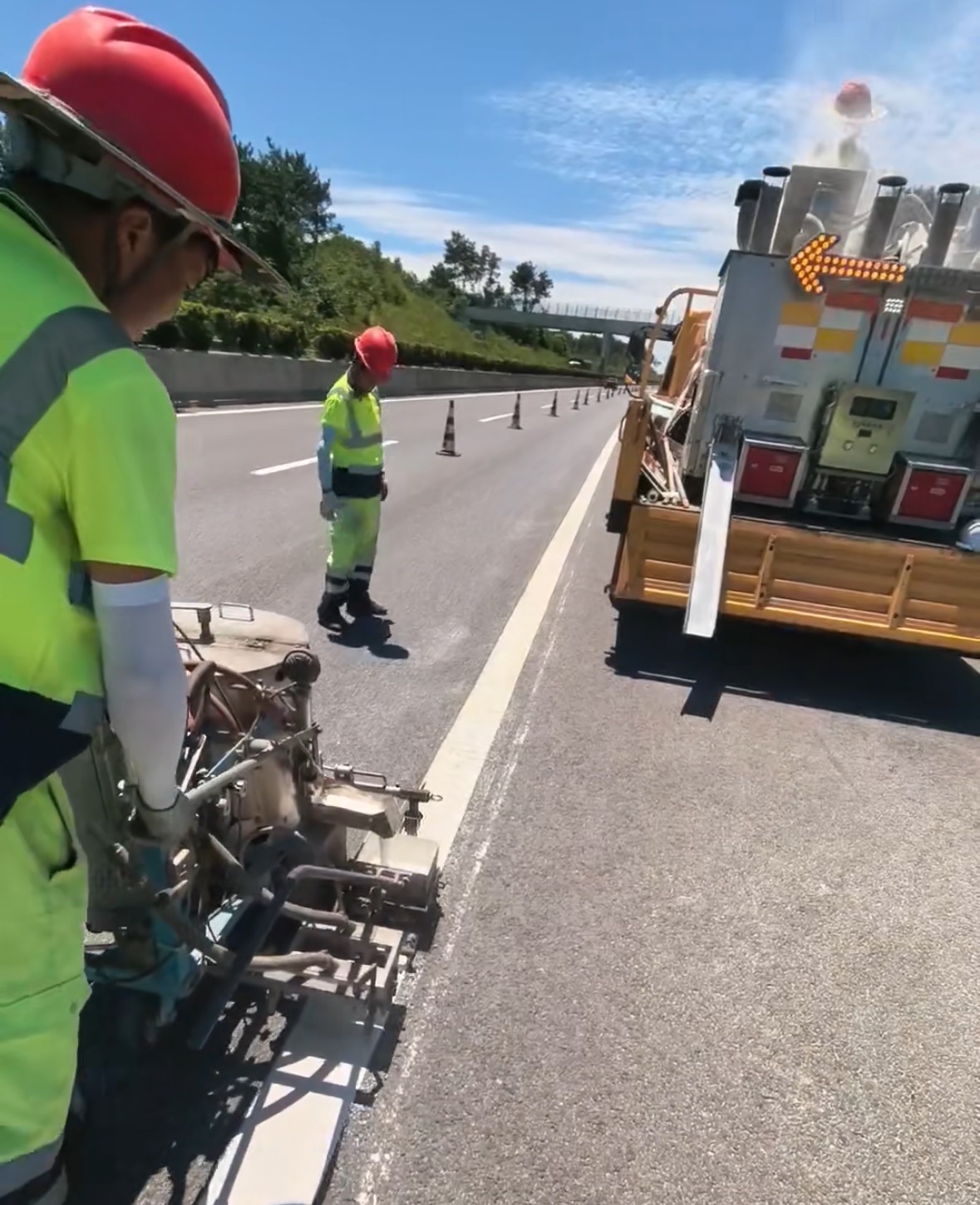

Highway & Highway Maintenance
Supports continuous supply for lane lines, edge lines and highway maintenance work.

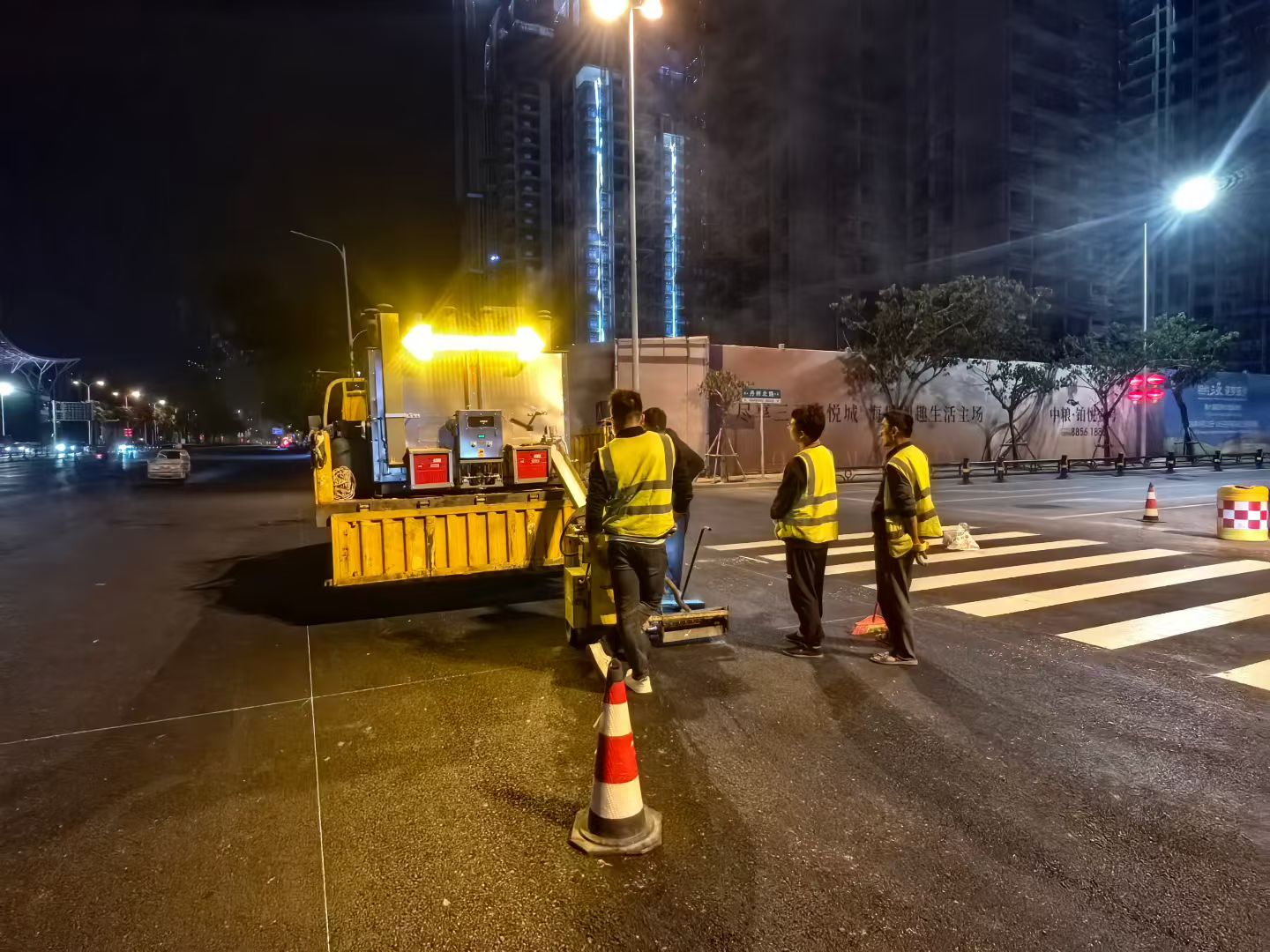

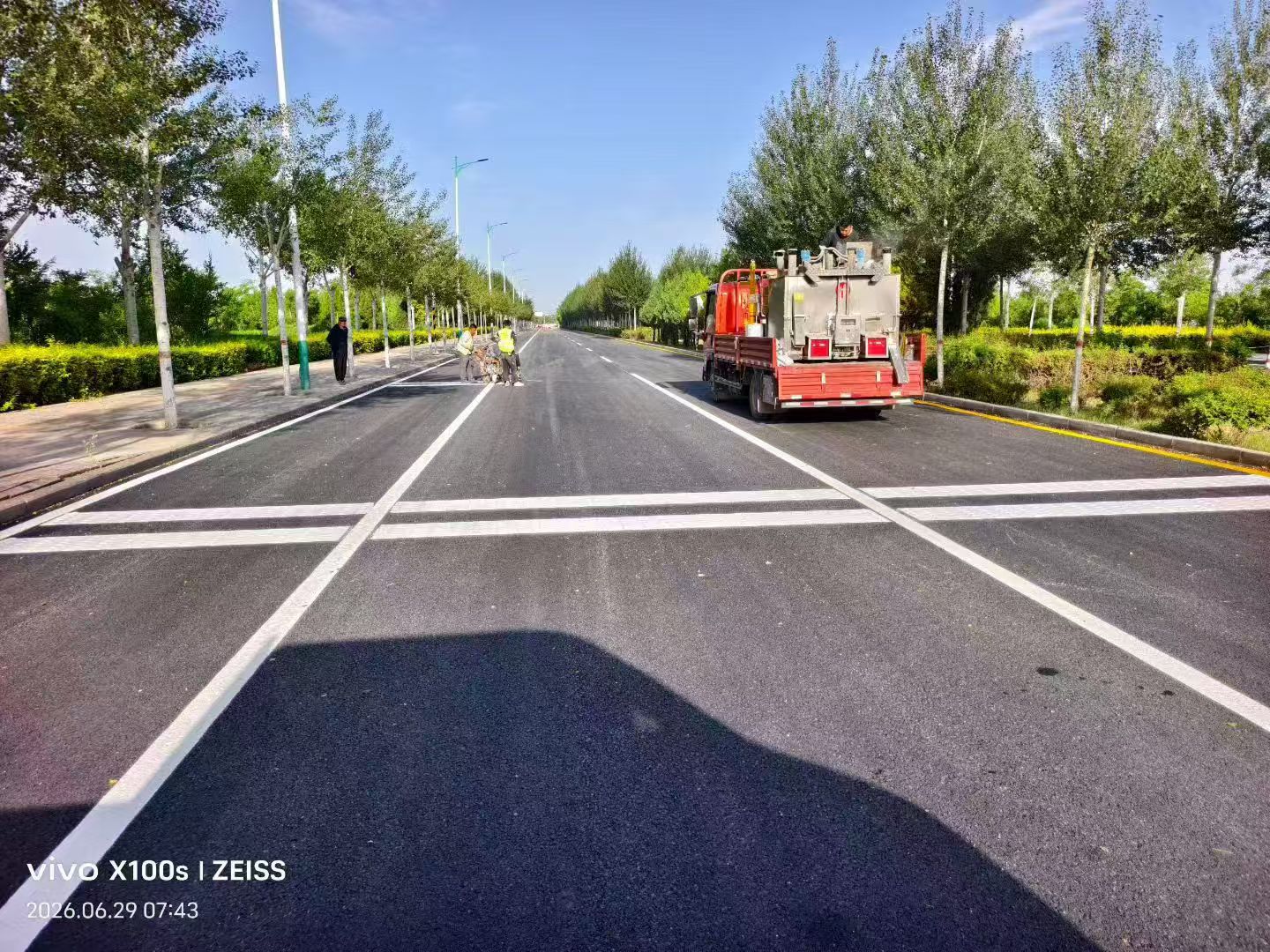

Urban & Municipal Roads
A practical fit for traffic lines, directional arrows and crossings on municipal roads.
Parking Lots & Industrial Zones
Supports thermoplastic material preparation for parking bays and internal traffic markings.
Service Roads & Facility Areas
Suitable for small-scale work around facilities and internal road networks.
Working Video
See the Machine in Action
A product video can later show the full melting process, automatic temperature performance, material stirring and burner operating status.
✓ Full thermoplastic material melting process
✓ Automatic temperature-control performance
✓ Stirring operation and material uniformity
✓ Burner and combustion status
Video area reserved
Video URL or cover image can be added here later.
Customization & Options
Configure the Kettle for Your Project
Discuss operating capacity and market requirements with our team to confirm a suitable configuration.
◉
Kettle Capacity
Discuss suitable capacity and configuration according to the daily material-melting requirement.
✦
Control Configuration
Confirm control, electrical and operation details for the intended work environment.
OEM
OEM Branding
Logo, nameplate and selected packaging customization are available for qualified orders.
◌
After-Sales Support
Original spare parts, operation guidance and technical support can be supplied.
FAQ
Questions Before You Choose This Preheater?
These answers cover material compatibility, temperature control and operation questions buyers commonly raise.
It is designed for standard thermoplastic road-marking material. Please confirm any special formulation or corrosive material with our engineering team before ordering.
The high-precision automatic control system maintains the set working temperature within ±0.1°C, automatically stopping and restarting heating as required.
This model uses an Italian RIELLO burner with electronic ignition, mechanical supercharging and fully atomized combustion.
Yes. Suitable tank and configuration options can be discussed according to your project throughput and transport requirements.
Typical fuel consumption is approximately 3 L/h, depending on material, ambient temperature and operating conditions.
Yes. Original spare parts, operation guidance and technical support can be supplied with the quotation and after delivery.
Standard export packing and sea shipment can be arranged according to the destination country and order requirements.
